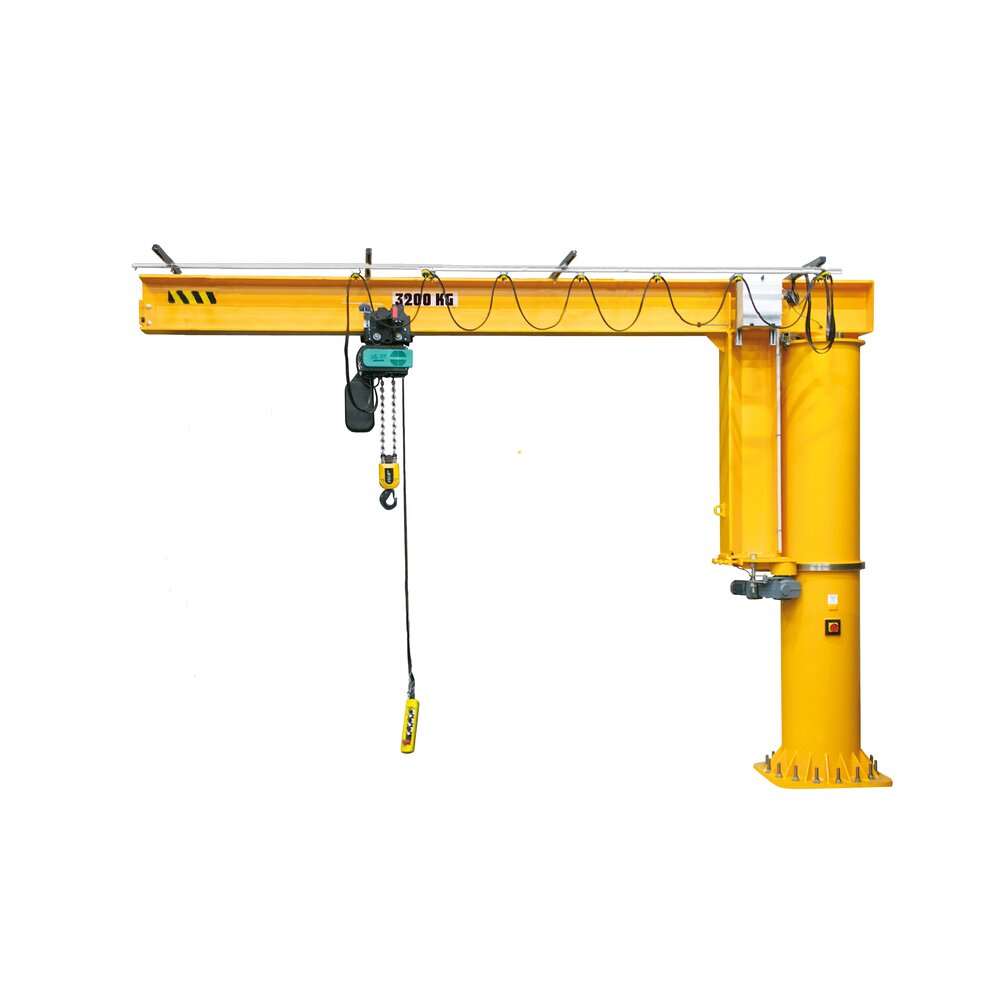

Appropriate for an indoor or outdoor use, the beam of the PRT is built on an I beam profile designed for an intensive use. The total rotation is on 360° and can be assisted by an engine (optional). The optional installation of a hoist motor direction is possible.
Floor fixing is effected by chemical anchors or anchor rods with foundation.
This model has a wide range of mechanical and electrical options.
Options
- Installation template + anchor rods (or base plate for chemical anchors, keeping its limitations in mind)
- Motorization on main roller (indoor use)
- Top-mounted motorization (outdoor use)
- Hoist power supply cable
- Lockable main switch
- 4-ring electrical collector, for unlimited rotation
- Hot dip galvanizing (contact us)
- Rotation stops to weld onto the assembly
- Single- or multipositions rotation lock
- Outdoor use
- Electric or manual hoist
| Outreach (m) / Capacity (kg) |
2 | 2,5 | 3 | 3,5 | 4 | 4,5 | 5 | 5,5 | 6 | 6,5 | 7 | 7,5 | 8 | 8,5 | 9 | 9,5 | 10 | 10,5 | 11 | 11,5 | 12 |
| 150 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 250 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 500 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 1000 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 1600 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 2000 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 2500 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| 3200 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | ||
| 4000 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | ||||
| 5000 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | ||||||
| 6300 | x | x | x | x | x | x | x | x | x | x | x | ||||||||||
| 8000 | x | x | x | x | x | x | x | x | x | ||||||||||||
| 10000 | x | x | x | x | x | x | x |
