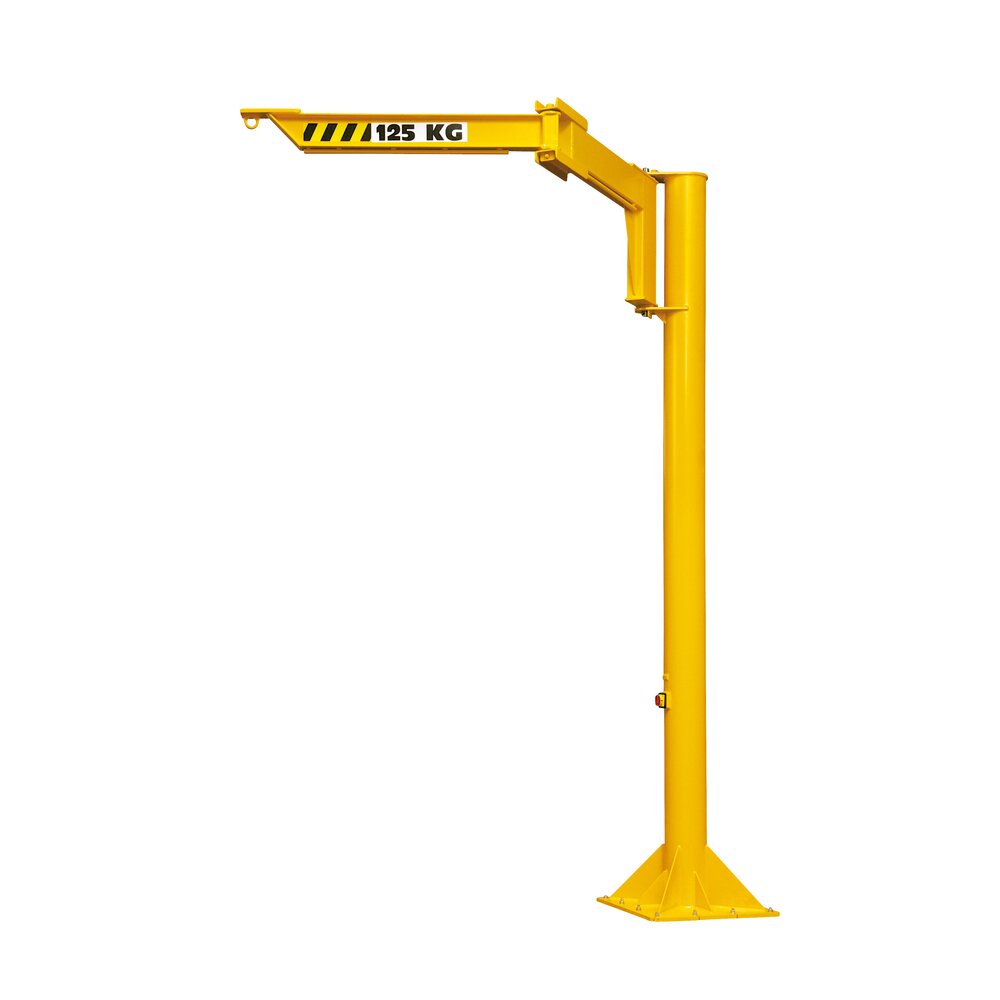

Appropriate for an indoor or outdoor use, this articulated jib crane has a very reduced headroom. The first arm can rotate 270° and the second 300°. The articulated structure facilitates the movement of loads in a cluttered environment. This model is restricted to only manual rotations.
Floor fixing is effected by chemical anchors or anchor rods with foundation.
A full range of accessories is available.
Options
- Installation template + anchor rods (or base plate for chemical anchors, keeping its limitations in mind)
- Hoist power supply cable
- Lockable main switch
- Rotation slowing device (adaptable without welding or mechanical intervention)
- Option of a slowing device on each arm
- Hot dip galvanizing (contact us)
- Rotation stops to weld onto the assembly, or adjustable, on 1 arm
- Single- or multipositions rotation lock (arm 1 only)
- Outdoor use
- Electric or manual hoist
| Outreach (m) / Capacity (kg) | 2 | 2,5 | 3 | 3,5 | 4 | 4,5 | 5 | 5,5 |
| 125 | x | x | x | x | x | x | x | x |
| 250 | x | x | x | x | x | x | x | x |
