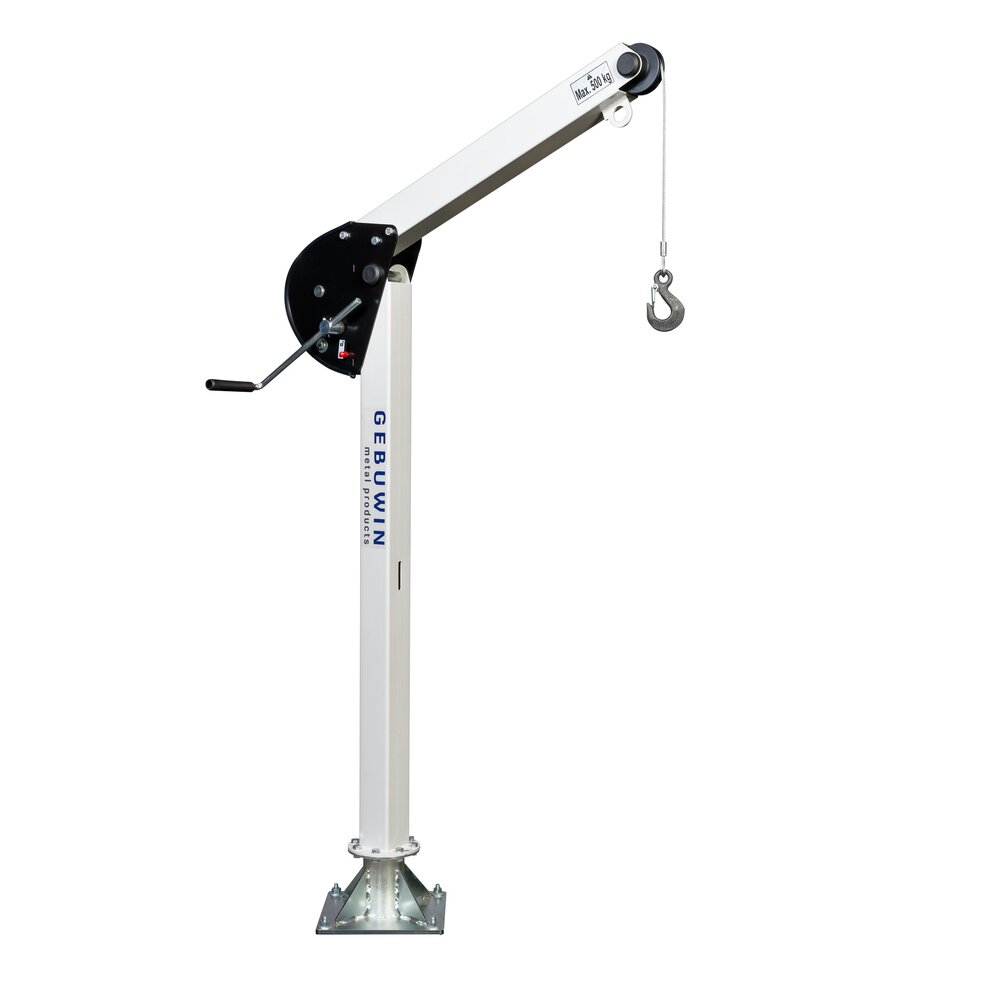

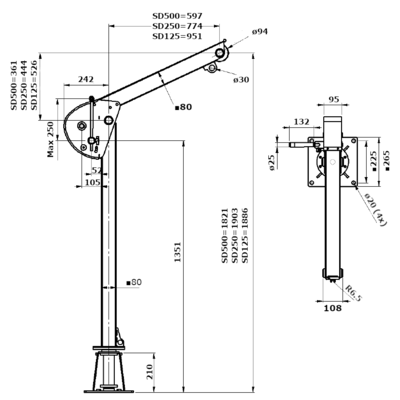

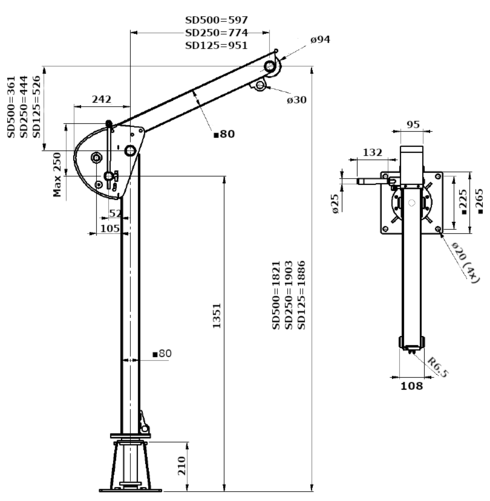

Portable Swivel Davit SD125-250-500

The Swivel Davit is a very user-friendly standing crane. Lightweight and
portable. Within 3 seconds this davit is ready for use. The integrated
winch and cable provide an ergonomic and modern look.

Specifications:

  • robust and safe lifting davit crane
  • ready to use in 5 seconds
  • integra

Show more

Product number:

The Swivel Davit is a very user-friendly standing crane. Lightweight and
portable. Within 3 seconds this davit is ready for use. The integrated
winch and cable provide an ergonomic and modern look.

Specifications:

  • robust and safe lifting davit crane
  • ready to use in 5 seconds
  • integrated winch and cable in a modern design

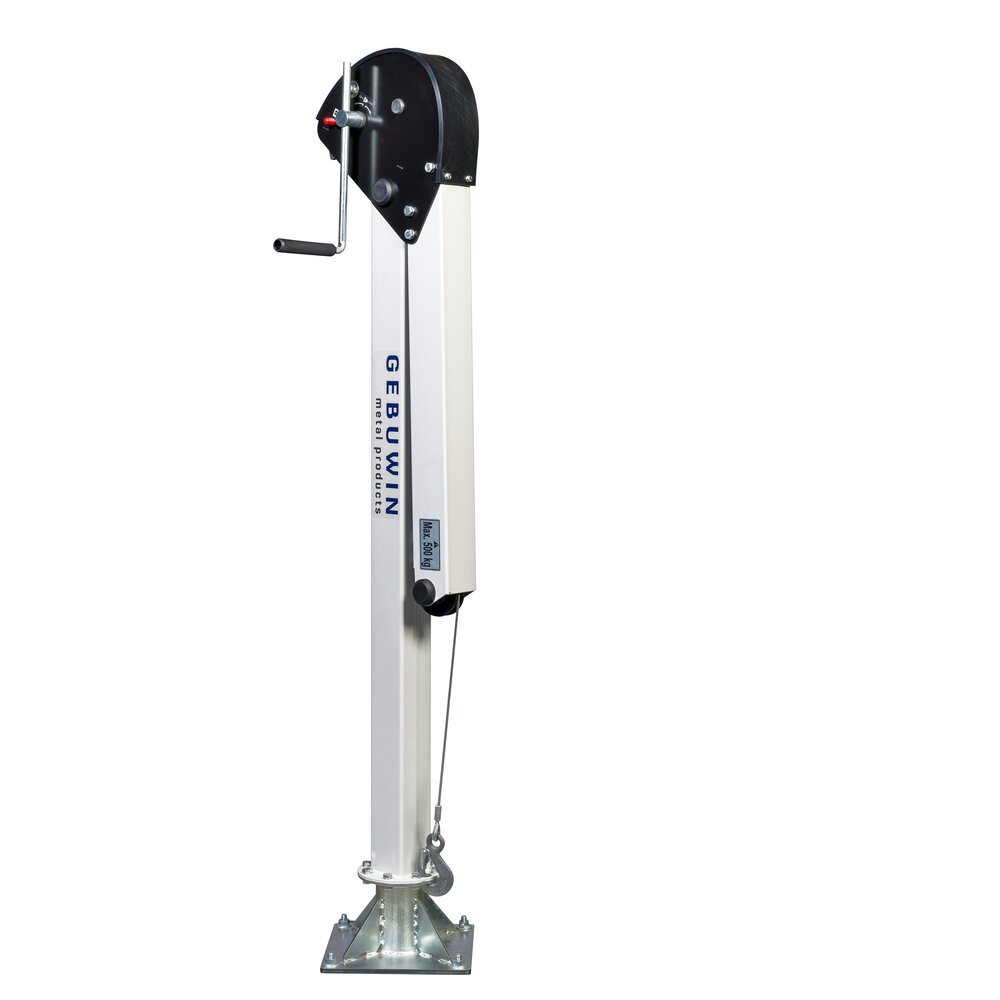

  • easy to transport

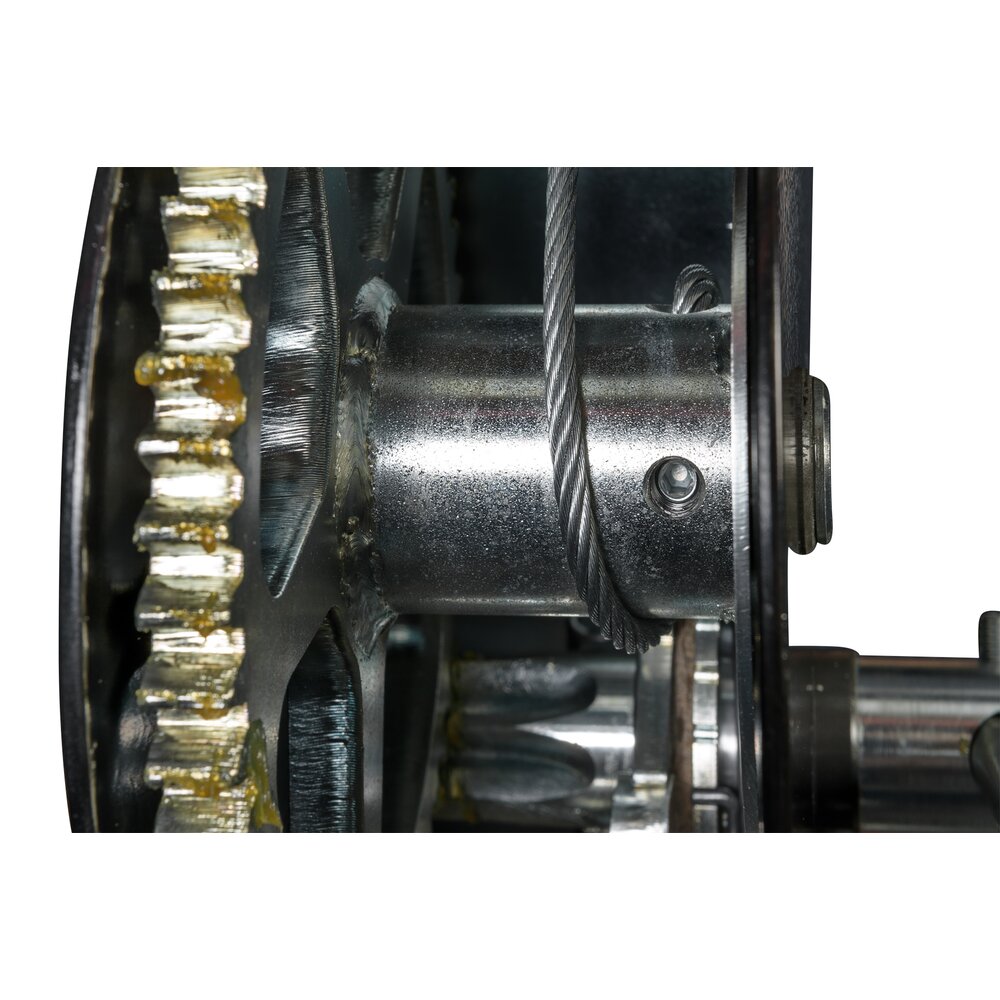

  • load pressure brake with double ratchet system for safe stable hold of the load in any position
  • possible to rotate 360° due to the use of ball bearings
  • adjustable crank
  • including 13 meter wire rope (d5 mm) with hook
  • 1 layer of paint

Optional:

  • zinc-plated finish (6 - 8 micron) (EV)
  • stainless steel grade SAE 316 (SST316)
  • ATEX certified (EX)

Accessories:

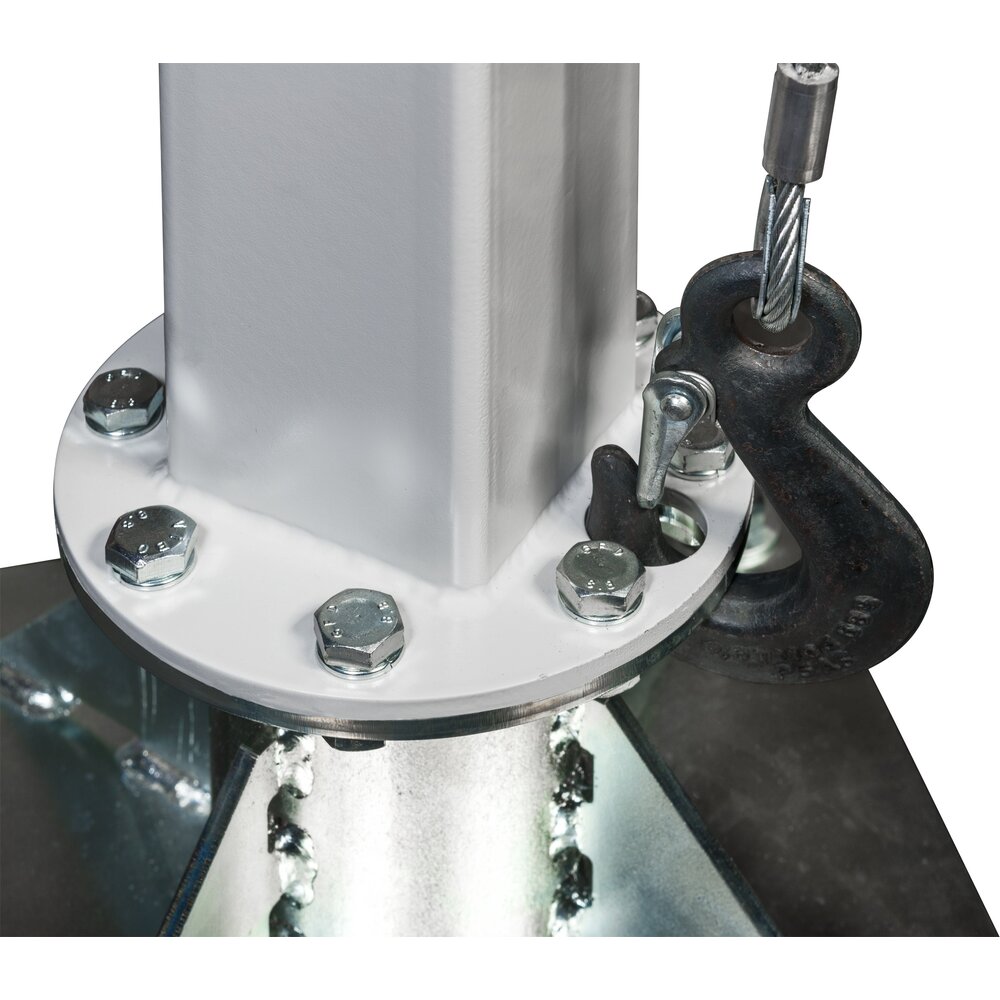

  • floor, wall and in-cement floor sockets
  • carry bag and rain protection cover
  • Marking: According to standard, CE-marked
  • Temperature range: -20°C up to +40°C
  • Finish: Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M
  • Standard: EN 13157
  • Note: All models standard delivered with 5 mm wire rope, length 13 m.
  • Safety factor: 4:1
