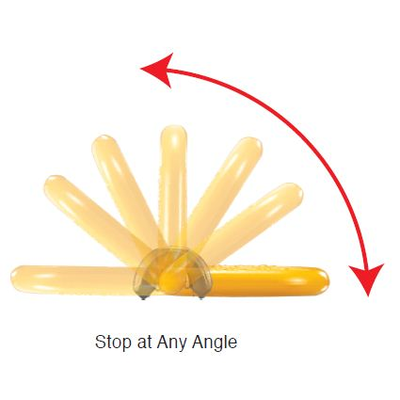

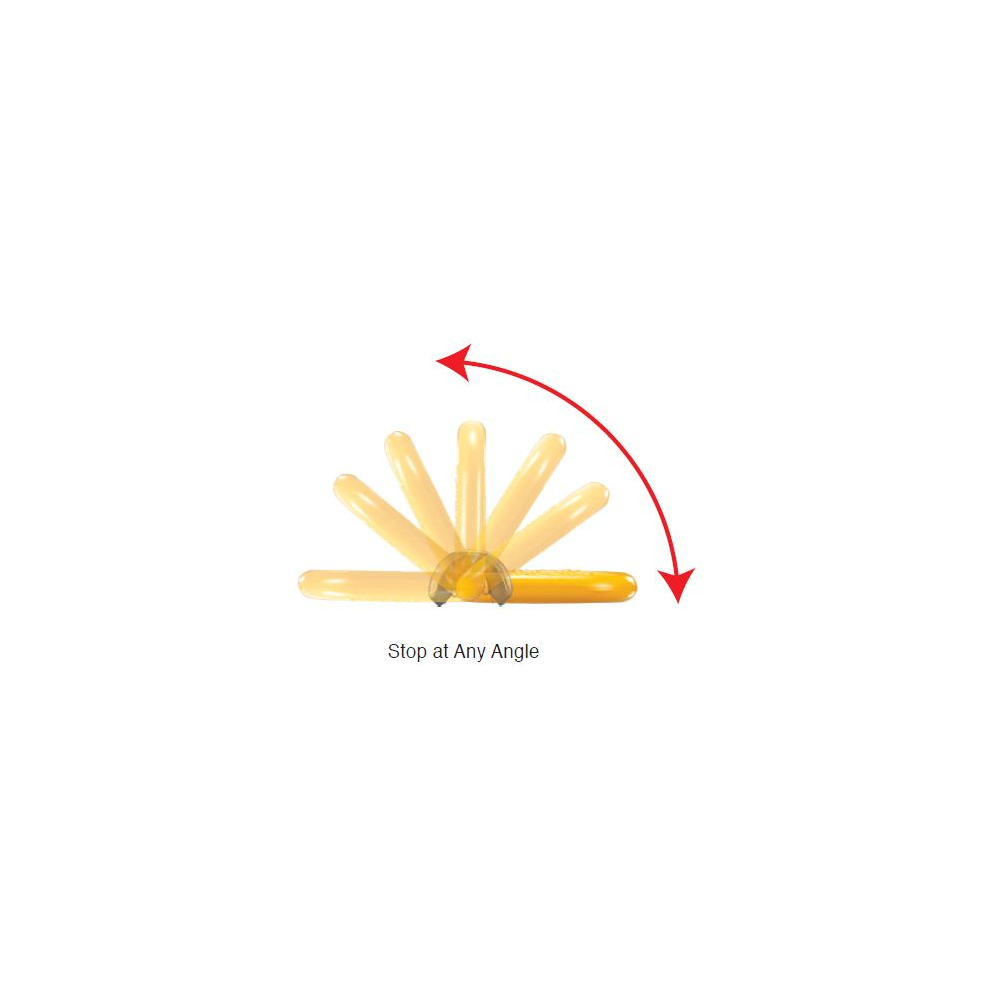

The eyes can be loaded with working load limit in all directions, pivots through 180°. Load rated parts are 100% magnaflux crack detected.
Individual forged parts are traceable to Test Certification.
Proof tested to 2.5 times the WLL, fatigue rated to 1.5 times the WLL.
A protected spring keeps the load ring in a required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibration.
- Material: Manufactured from forged alloy steel, quenched and tempered.
- Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability.
- Standard: EN 1677-1

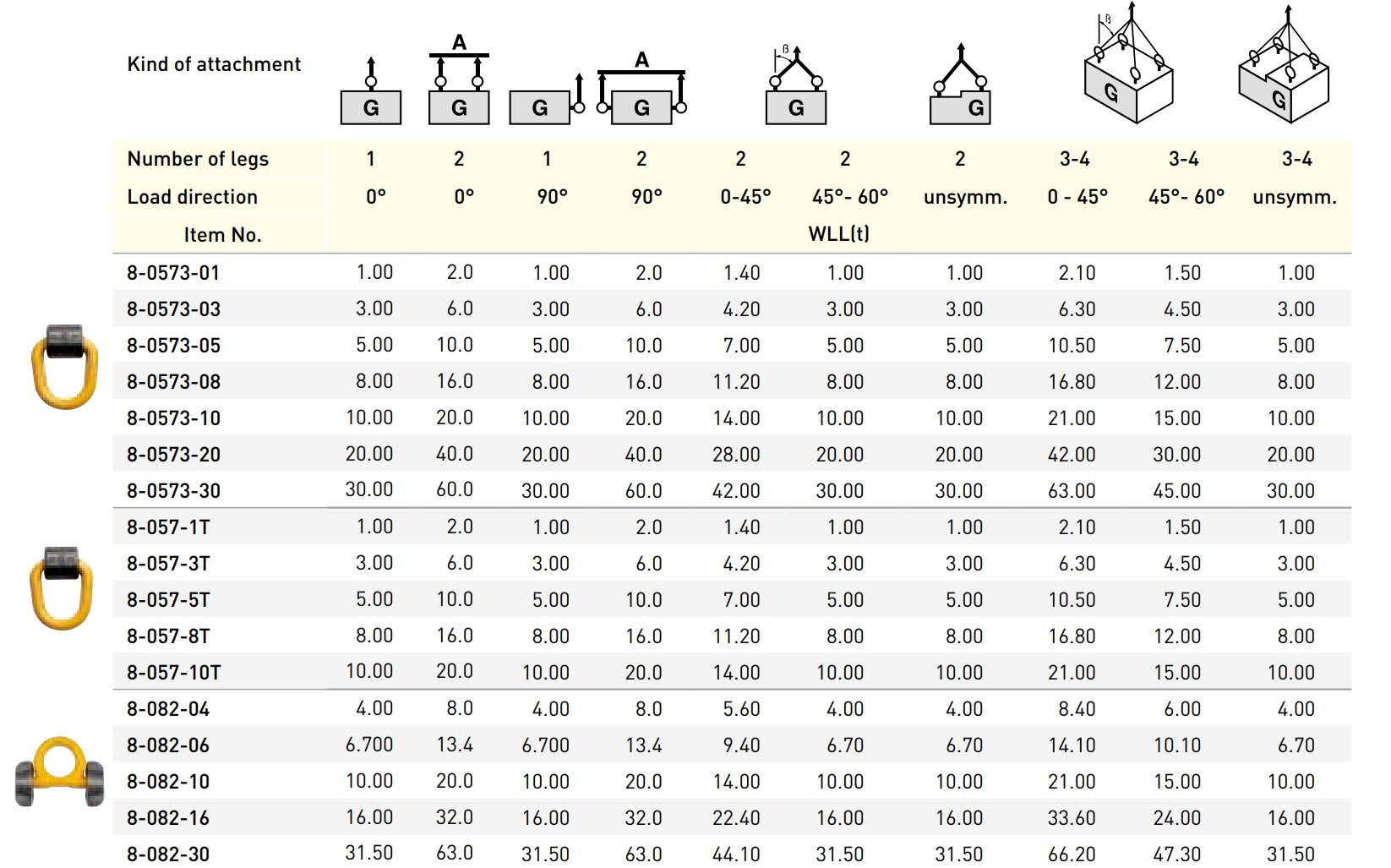

Kind of attachment | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
Number of legs | 1 | 2 | 1 | 2 | 2 | 2 | 2 | 3-4 | 3-4 | 3-4 |
Load direction | 0° | 0° | 90° | 90° | 0-45° | 45-60° | Unsymm. | 0-45° | 45-60° | Unsymm. |
8-057-1T | 1 | 2 | 1 | 2 | 1,4 | 1 | 1 | 2,1 | 1,5 | 1 |
8-057-3T | 3 | 6 | 3 | 6 | 4,2 | 3 | 3 | 6,3 | 4,5 | 3 |
8-057-5T | 5 | 10 | 5 | 10 | 7 | 5 | 5 | 10,5 | 7,5 | 5 |
8-057-8T | 8 | 16 | 8 | 16 | 11,2 | 8 | 8 | 16,8 | 12 | 8 |
8-057-10T | 10 | 20 | 10 | 20 | 14 | 10 | 10 | 21 | 15 | 10 |
