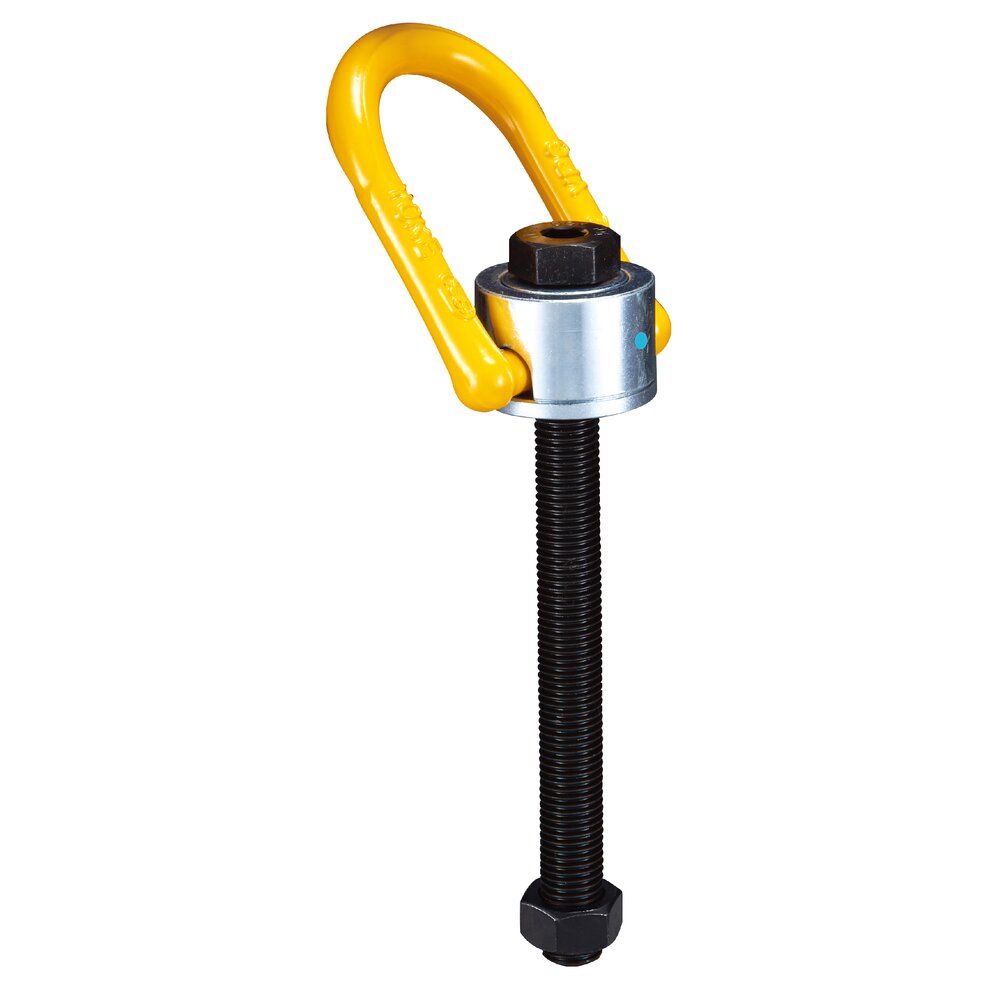

This swivel hoist ring rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolt are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- Quick and simple assembly, just a tapped hole is required.
- Features: Built-in RFID/NFC chip
- Material: Forged alloy steel, quenched and tempered
- Marking: According to standard, CE-marked
- Standard: EN 1677-1
- Safety factor: 4:1

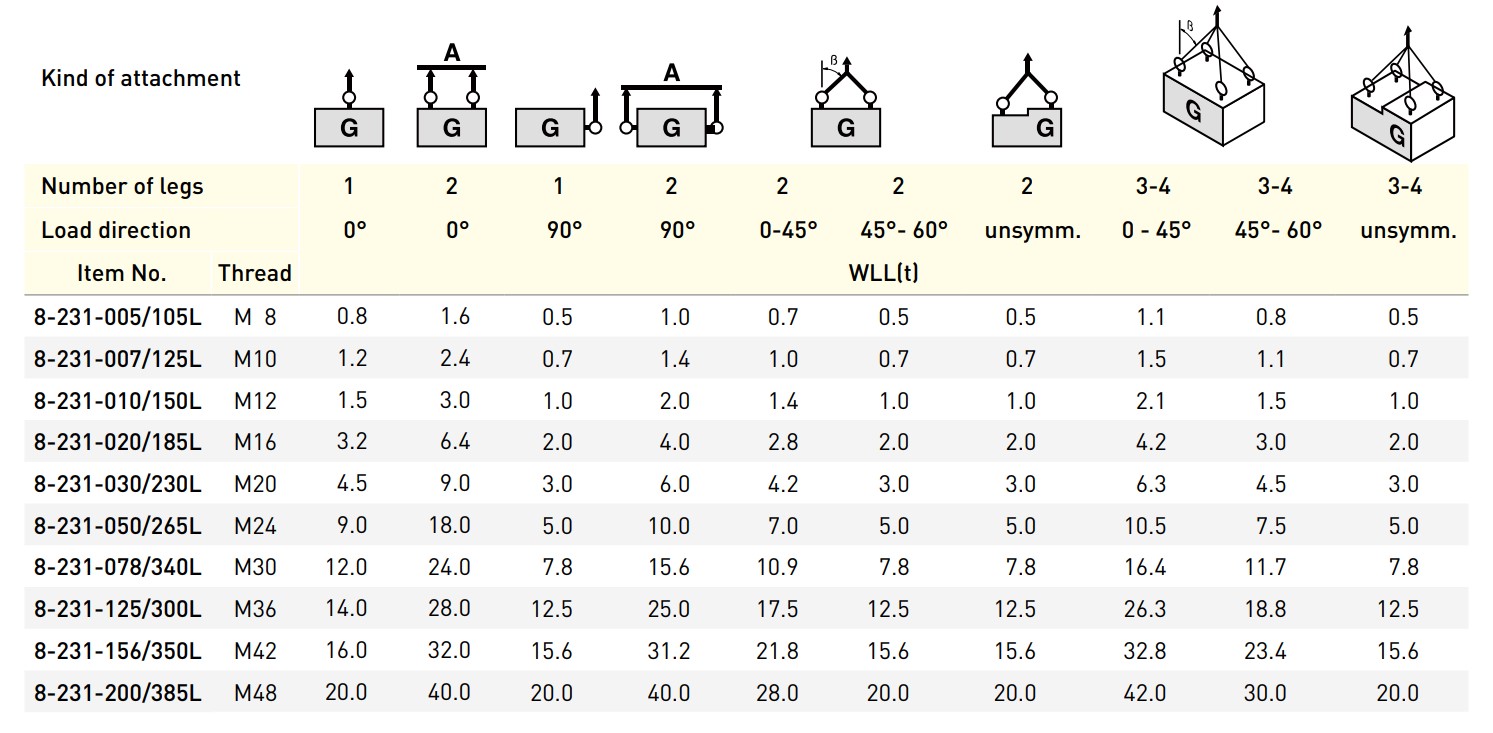

| Lifting method |  |
 |
 |
 |
 |
 |
 |
 |
|||
| No of legs | 1 | 2 | 1 | 2 | 2 | 2 | 2 | 3-4 | 3-4 | 3-4 | |
| Angle of inclination | 0 | 0 | 90 | 90 | 0-45 | 45-60 | unsymm. | 0-45 | 45-60 | unsymm. | |
| Thread | Load capacity (ton) | ||||||||||
| M8 | 0,8 | 1,6 | 0,5 | 1 | 0,7 | 0,5 | 0,5 | 1,1 | 0,8 | 0,5 | |
| M10 | 1,2 | 2,4 | 0,7 | 1,4 | 1 | 0,7 | 0,7 | 1,5 | 1,1 | 0,7 | |
| M12 | 1,5 | 3 | 1 | 2 | 1,4 | 1 | 1 | 2,1 | 1,5 | 1 | |
| M16 | 3,2 | 6,4 | 2 | 4 | 2,8 | 2 | 2 | 4,2 | 3 | 2 | |
| M20 | 4,5 | 9 | 3 | 6 | 4,2 | 3 | 3 | 6,3 | 4,5 | 3 | |
| M24 | 9 | 18 | 5 | 10 | 7 | 5 | 5 | 10,5 | 7,5 | 5 | |
| M30 | 12 | 24 | 7,8 | 15,6 | 10,9 | 7,8 | 7,8 | 16,4 | 11,7 | 7,8 | |
| M36 | 14 | 28 | 12,5 | 25 | 17,5 | 12,5 | 12,5 | 26,3 | 18,8 | 12,5 | |
| M42 | 16 | 32 | 15,6 | 31,2 | 21,8 | 15,6 | 15,6 | 32,8 | 23,4 | 15,6 | |
| M48 | 20 | 40 | 20 | 40 | 28 | 20 | 20 | 42 | 30 | 20 |
