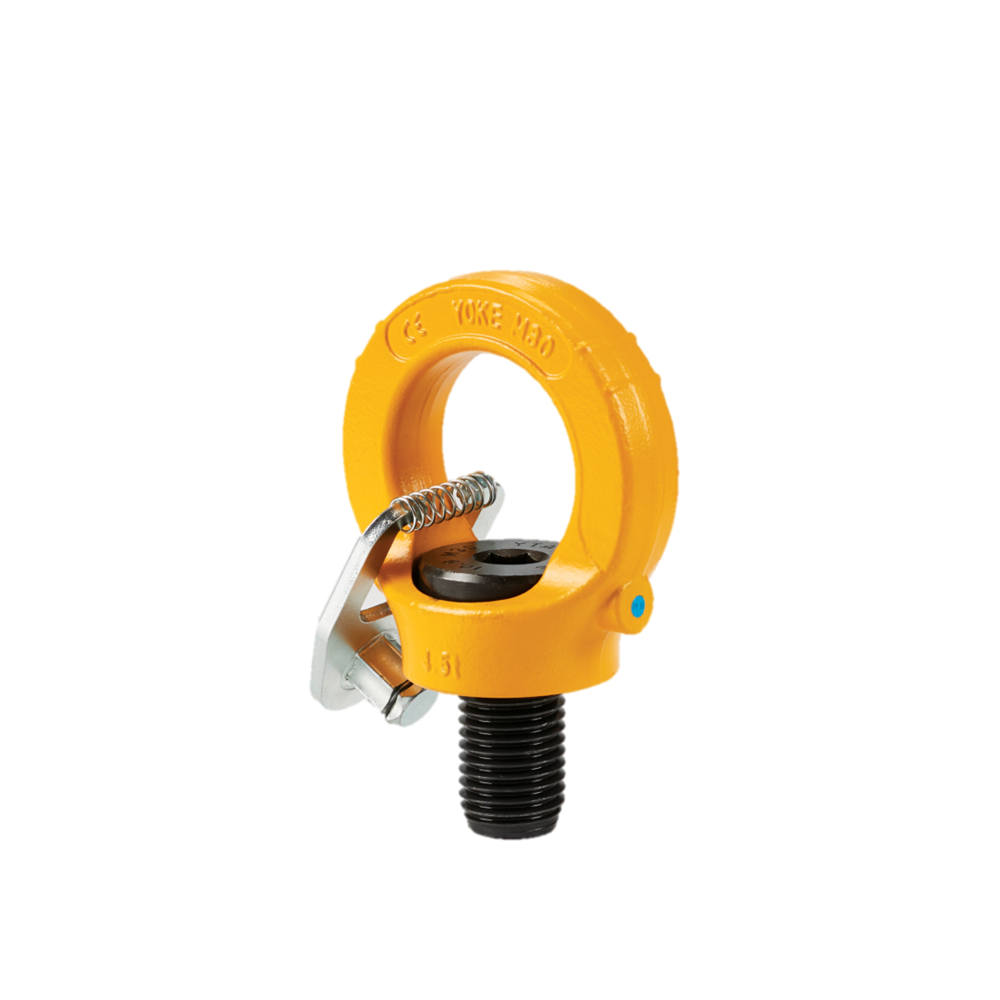

The lifting eye rotates through 360° adjustable in the direction of the load.
All Yoke lifting points meet or exceed all the requirements of ASME B30.26.
- Features: Built-in RFID/NFC chip
- Material: Alloy steel, quenched and tempered. Captive bolt with high WLL
- Marking: According to standard, CE-marked
- Temperature range: -40° up to +200°C (without reduction in WLL).
- Finish: Painted
- Standard: EN 1677-1
- Safety factor: 4:1
- Grade: 10

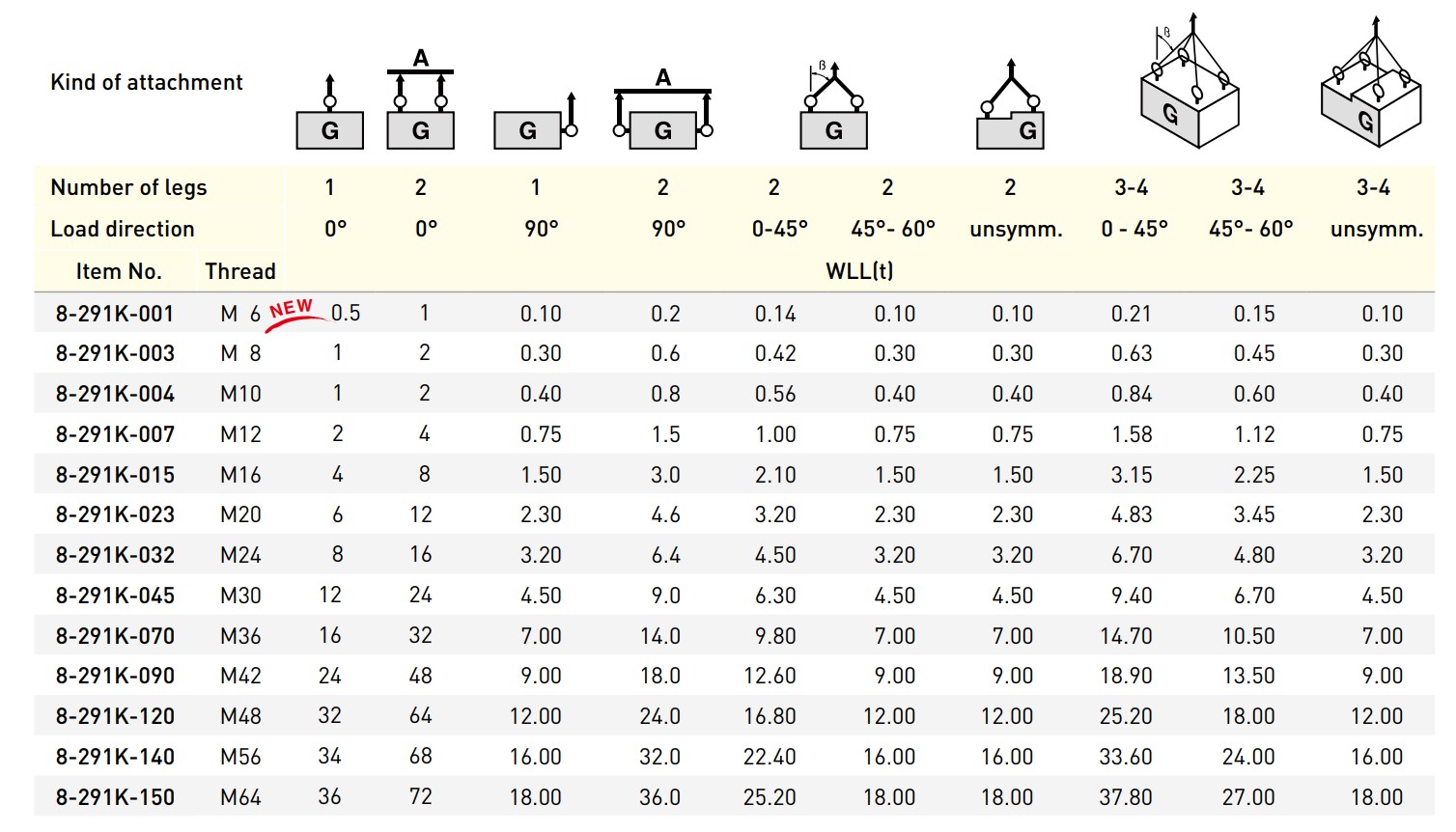

Load diagram
Lifting method
|
![]() |
![]() |
![]() |
![]() |
![]() |
|
![]() |
|
|
![]() |
|
No of legs
|
1
|
2
|
1
|
2
|
2
|
2
|
3-4
|
3-4
|
2
|
3-4
|
|
Angle of inclination
|
0°
|
0°
|
90°
|
90°
|
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
unsymm.
|
unsymm.
|
|
Threas | Load capacity (ton) | ||||||||||
M 8
|
1
|
2
|
0,3
|
0,6
|
0,42
|
0,3
|
0,63
|
0,45
|
0,3
|
0,3
|
|
M 10
|
1
|
2
|
0,4
|
0,8
|
0,56
|
0,4
|
0,8
|
0,6
|
0,4
|
0,4
|
|
M 12
|
2
|
4
|
0,75
|
1,5
|
1
|
0,75
|
1,5
|
1,1
|
0,75
|
0,75
|
|
M 16
|
4
|
8
|
1,5
|
3
|
2,1
|
1,5
|
3,1
|
2,2
|
1,5
|
1,5
|
|
M 20
|
6
|
12
|
2,3
|
4,6
|
3,2
|
2,3
|
4,8
|
3,4
|
2,3
|
2,3
|
|
M 24
|
8
|
16
|
3,2
|
6,4
|
4,5
|
3,2
|
6,7
|
4,8
|
3,2
|
3,2
|
|
M 30
|
12
|
24
|
4,5
|
9
|
6,3
|
4,5
|
9,4
|
6,7
|
4,5
|
4,5
|
|
M 36
|
16
|
32
|
7
|
14
|
9,8
|
7
|
14,7
|
10,5
|
7
|
7
|
|
M 42
|
24
|
48
|
9
|
18
|
12,6
|
9
|
18,9
|
13,5
|
9
|
9
|
|
M 48
|
32
|
64
|
12
|
24
|
16,8
|
12
|
25
|
18 | 12 |
12
|
|
M 56
|
34
|
68
|
16
|
32 | 22.4 | 16 | 32 | 24 | 16 |
16
|
|
M 64
|
36
|
72 |
18
|
36 | 25.2 |
18
|
36 | 27 | 18 |
18
|
