Design: Roundsling covered with extra protection sleeve and provided with strengthen eye in each end, assembled as tool in combination with lifting details in grade 8. Max manufacturing length 20 m.
Stretch with working load: 2-3%.
Length tolerance: Nominal length ±2%.
Safety factor: Forge 4:1 and round sling 7:1.
- Material: Polyester. Resistant to most acids but not strong alkalizes.
- Marking: According to standard, The slings are provided with a label with manufacturer’s symbol, working load limit (WLL) and CE marking.
- Temperature range: app. -40° - +100°C.
- Standard: EN 1492-2
- Grade: 10

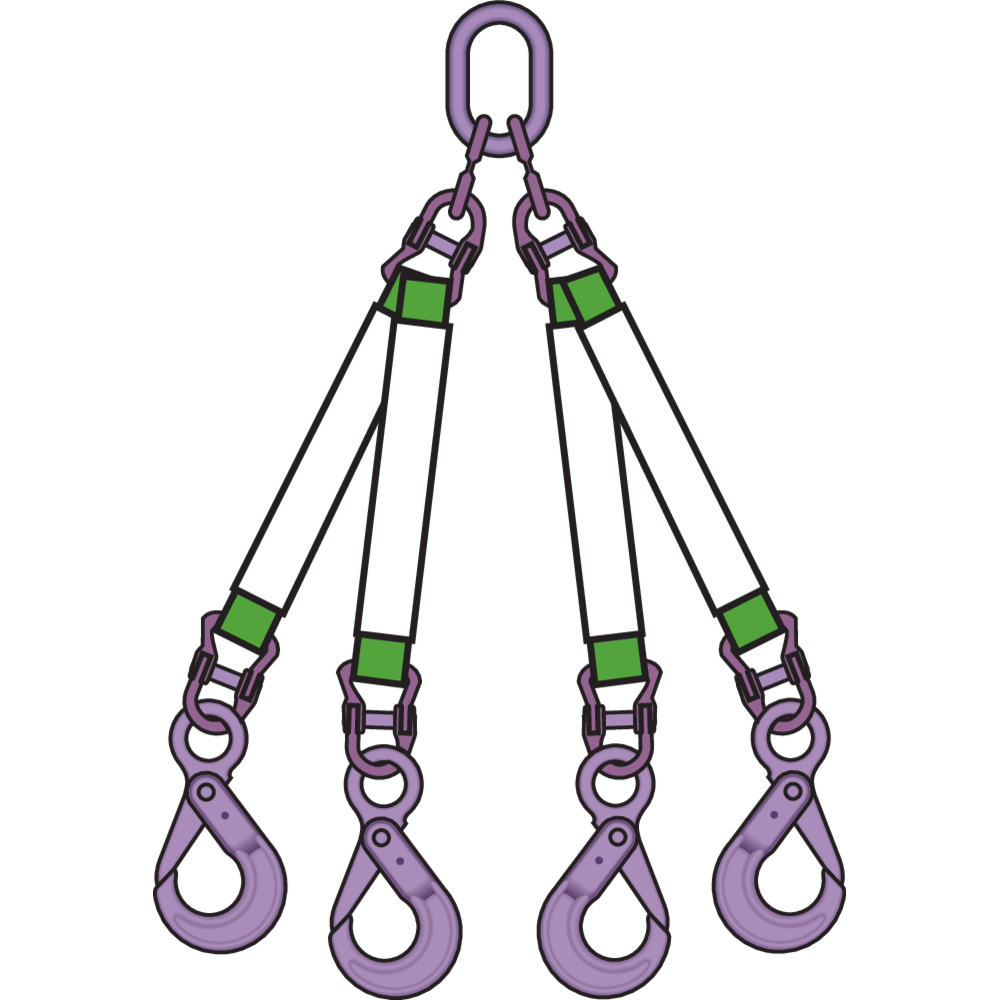

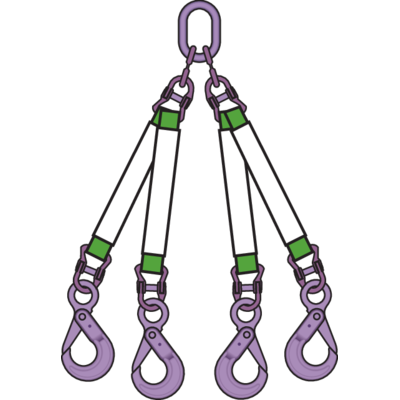

Multi-leg polyester sling
EN 1492-1 / EN 1677
| 1-part | 2-part | 3-4-part | ||||||
|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
||
| Straight pull | Choke hitch | Basket hitch | 0°−45° | 45°−60° | 0°−45° | 45°−60° | ||
| Webbing Color | Working load limit (WLL) in tons | |||||||
| Purple | 1,0 | 0,8 | 2,0 | 1,4 | 1,0 | 2,1 | 1,5 | |
| Green | 2,0 | 1,6 | 4,0 | 2,8 | 2,0 | 4,2 | 3,0 | |
| Yellow | 3,0 | 2,4 | 6,0 | 4,2 | 3,0 | 6,3 | 4,5 | |
| Grey | 4,0 | 3,2 | 8,0 | 6,4 | 4,0 | 8,4 | 6,0 | |
| Red | 5,0 | 4,0 | 10,0 | 7,0 | 5,0 | 10,5 | 7,5 | |
| Brown | 6,0 | 4,8 | 12,0 | 8,6 | 6,0 | 12,6 | 9,0 | |
| Blue | 8,0 | 6,4 | 16,0 | 11,2 | 8,0 | 16,8 | 12,0 | |
| Orange | 10,0 | 8,0 | 20,00 | 14,0 | 10,0 | 21,0 | 15,0 | |
| Orange | 15,0 | 12,00 | 30,00 | 21,0 | 15,0 | 31,5 | 22,5 | |
| Orange | 20,0 | 16,00 | 40,00 | 28,0 | 20,0 | 42,0 | 30,0 | |
| Orange | 25,0 | 20,00 | 50,00 | 35,0 | 25,0 | 52,5 | 37,5 | |
| Factor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | |
| When a multi-leg sling is used in a chocker hitch, reduce the values by 20% | ||||||||
