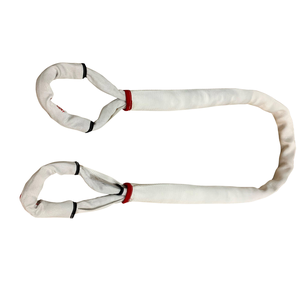

Powertex-Extra round slings offer high life cycle and outstanding technical performance. This round slings are the result from common development with end users in the field of heavy installation and an ongoing improvement process. This sling is made of high tensile polyester. The special configuration guarantee optimal dimensions and easy handling. The robust side seam extra protected labels and the extra heavy webbing characterize this sling.
Powertex round slings are suited to be connected direct to the load with a basket hitch or a choke hitch.
Combined with fittings and edge protection they are multifunctional slings with working loads up to 200t.
- Safety factor: 7:1
Roundsling polyester
EN 1492-1
|
Safety Factor 7:1 |
Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| 0°−45° | 45°−60° | |||||
| Color | Working load limit (WLL) in tons | |||||
| Purple | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| Green | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| Yellow | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| Grey | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| Red | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| Brown | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| Blue | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| Orange | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| Orange | 12,0 | 24,0 | 9,6 | 16,8 | 12,00 | |
| Orange | 15,0 | 30,0 | 12,0 | 21,0 | 15,0 | |
| Orange | 20,0 | 40,0 | 16,0 | 28,0 | 20,0 | |
| Orange | 25,0 | 50,0 | 20,0 | 35,0 | 25,0 | |
| Orange | 30,0 | 60,0 | 24,0 | 42,0 | 30,0 | |
| Orange | 35,0 | 70,0 | 28,0 | 49,0 | 35,0 | |
| Orange | 40,0 | 80,0 | 32,0 | 56,0 | 40,0 | |
| Orange | 50,0 | 100,0 | 40,0 | 70,0 | 50,0 | |
| Orange | 60,0 | 120,0 | 48,0 | 84,0 | 60,0 | |
| Orange | 70,0 | 140,0 | 56,0 | 98,0 | 70,0 | |
| Orange | 80,0 | 160,0 | 64,0 | 112,0 | 80,0 | |
| Orange | 85,0 | 170,0 | 68,0 | 119,0 | 85,0 | |
| Orange | 90,0 | 180,0 | 72,0 | 126,0 | 90,0 | |
| Orange | 100,0 | 200,0 | 80,0 | 140,0 | 100,0 | |
| Orange | 125,0 | 250,0 | 100,0 | 175,0 | 125,0 | |
| Orange | 150,0 | 300,0 | 120,0 | 210,0 | 150,0 | |
| Orange | 175,0 | 350,0 | 140,0 | 245,0 | 175,0 | |
| Orange | 180,0 | 360,0 | 144,0 | 252,0 | 180,0 | |
| Orange | 200,0 | 400,0 | 160,0 | 280,0 | 200,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
