ROPETEX PERFORM 8CP
Product information

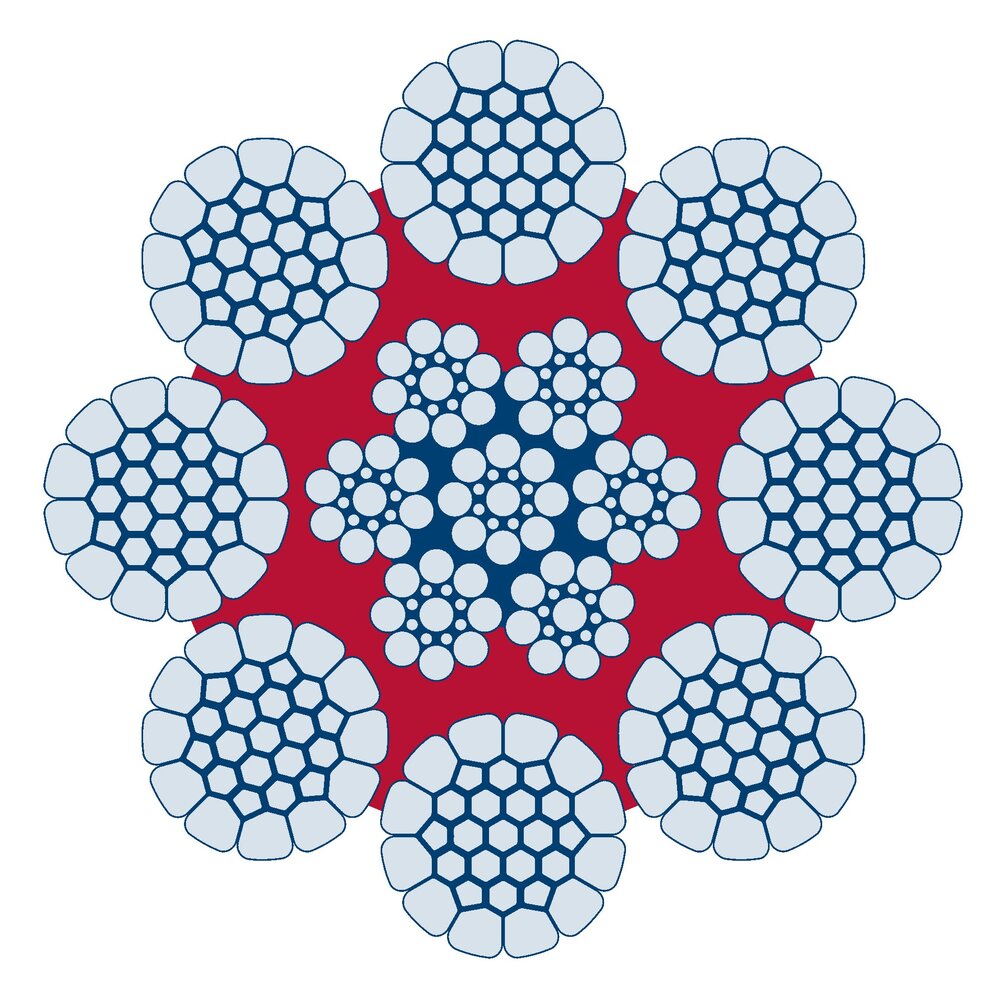

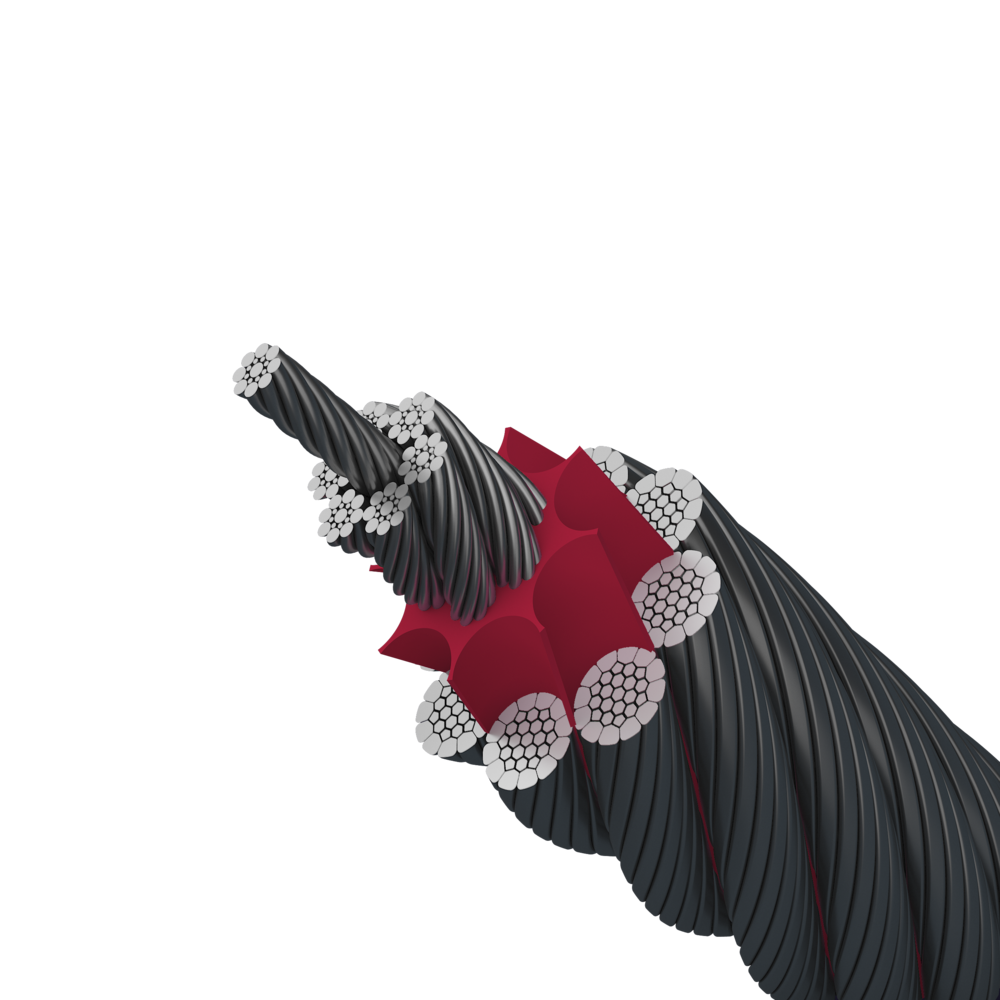

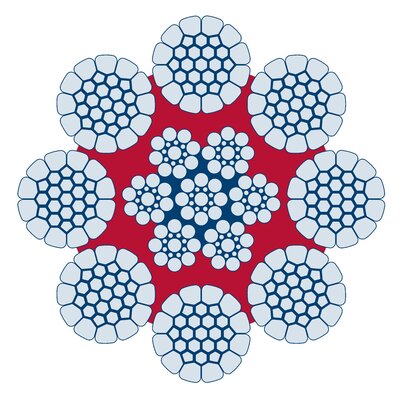

ROPETEX PERFORM 8CP is a high-quality steel wire rope consisting of eight strands. The outer strands are compacted, and the core is separated from the outer strands by a plastic layer, reducing internal stress and giving it an excellent service life. Ropetex PERFORM 8CP is not rotation resistant.
Key product benefits
- Excellent lifetime
- Suitable for multi-layer drum spooling
- Very resistant against crushing
- Very abrasion resistant
- High breaking load (MBL)
- Plastic layer to reduce internal friction and stress while protecting the core
Main applications
- Hoist rope
- Auxiliary hoist rope
- Boom Hoist rope
- Luffing rope
- Trolley rope
- Pendant rope
- Grab rope
Standard: EN12385
Rope Category Numbers acc. to ISO4309:2017
- Ø 8 mm to 14 mm: RCN 04
- Ø 15 mm to 39 mm: RCN 09
- Ø 40 mm to 48 mm: RCN 11
- Temperature range: -40°C up to +60°C with standard lubricant
- Fill factor: 0,664
- Tolerance Ø: +2% to +4%
-
Container crane
-
Overhead cranes
-
Truck crane
-
Offshore crane
-
Deck crane
-
Harbour mobile crane
-
Ladle crane
-
STS crane
-
Straddle carrier
-
RTG
