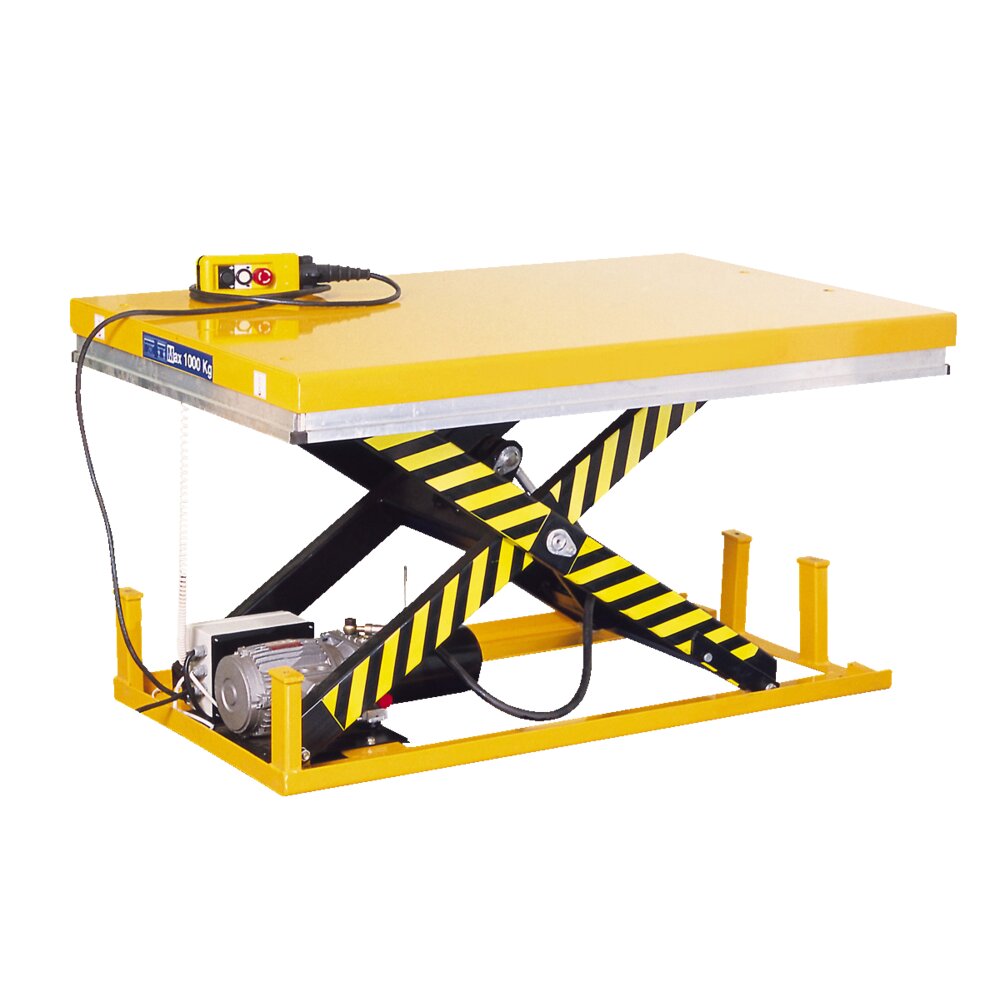

For installation, repairs, packaging etc. Operating voltage 3-phase /380-400 V/50 Hz. Control device (cable) with lifting and lowering functions, as well as emergency stop. Equipped with a protection frame, which prevents the table from lowering, if something gets in between the plates. Electromagnetic valve, the table can not be lowered (it will stop), if a hose breaks. Delivered completely assembled without plug.
- Features: Lifting times 1/2t: 20 sek | 4t: 40 sek
- Material: Steel
- Marking: According to standard, CE-marked
- Finish: Painted, yellow
- Standard: EN 1570
SPARE PARTS
| Spare part (product code) | Description | Suitable for lift table (product code/-s) |
| NOSPHKAPULA | Hand control switch | Incl. cable and plug | NOSP1000H, NOSP2000H, NOSP4000H |
| NOSPBOX2 | Electric control box/unit | New type, with steel connectors | NOSP1000H, NOSP2000H, NOSP4000H |
Note: Suitable for lifting tables manufactured after (year) 2013
Also other spare parts available with a delivery time, ask our sales for more information

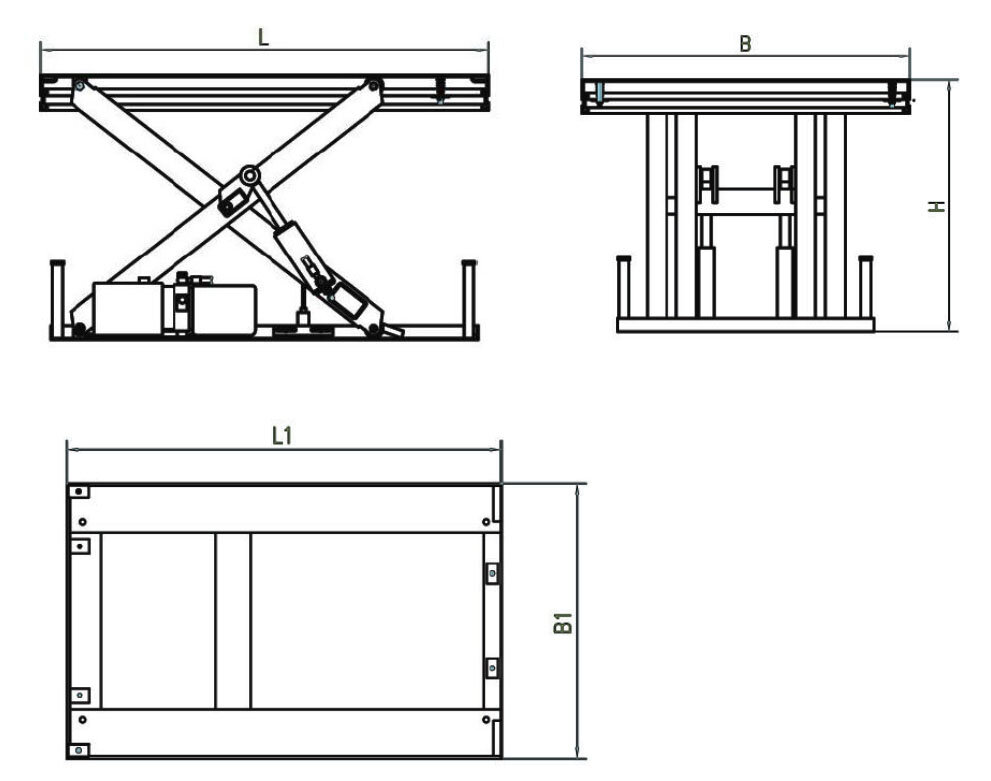

DIMENSIONS

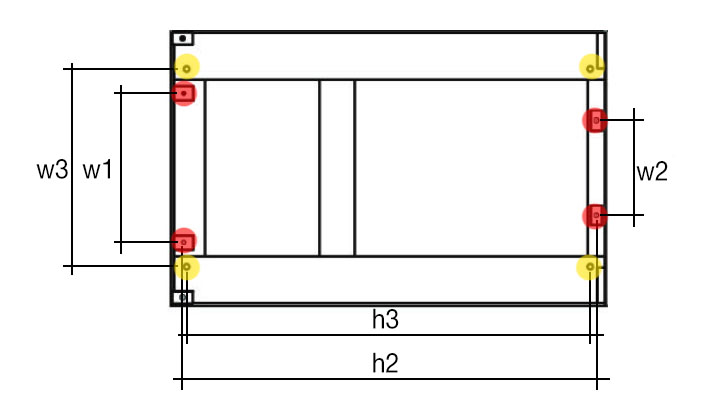

| Model | bottom plate, floor mounting holes (yellow) h3*w3 | top plate, lifting eye holes (red) h2*w1-2 | diameter of holes for floor fixing | the diameter of the holes in the lifting eyes | the thickness of the bottom plate | thickness of the top plate |
| NOSP1000H | 1206*480 mm | 1205*410 mm | 16 mm | 20 mm | 4 mm | 5 mm |
| NOSP2000H | 1195*545 mm | the fixed head of a scissor w1: 1130*740 mm roller head of a scissor w2: 1130*440 mm |
16 mm | 20 mm | 5 mm | 6 mm |
| NOSP4000H | 1500*630 mm | 1500*540 mm | 16 mm | 20 mm | 5 mm | 6 mm |
